Acoustic-RibPanel

Acoustic comfort with exclusive design

Acoustic comfort with exclusive design

Acoustic-RibPanels consist of wood-based panels that are individually manufactured with different surfaces and fixed to an acoustic felt support with appropriate spacing. These ready-to-use elements can be easily installed or further processed if required. Acoustic-RibPanels can be installed as accent panels, but also with a seamless character without visual transitions.

Merken

Possible surfaces



Merken

Merken

Examples

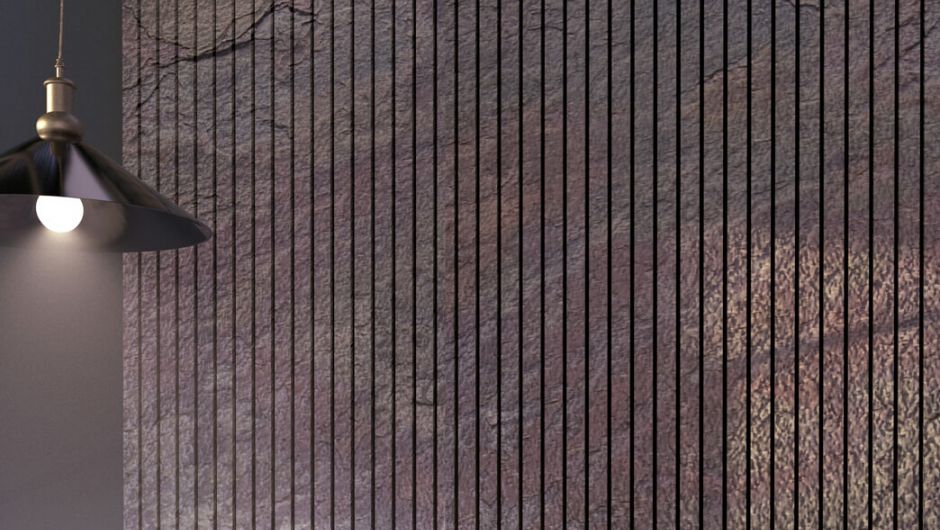

Loft

Product:
Acoustic-RibPanel, StoneVeneer Multi Color

Wall cladding

Properties for perfect acoustics

Material structure

Acoustic-RibPanels consist of lamellas, which are individually manufactured with different surfaces and fixed on acoustic felt panels.

1. Surface material front side
2. Natural MDF (alternatives on request)
3. PET felt black (alternatives on request)

Mounting

Acoustic-RibPanels can be easily mounted by nailing, stapling and screwing through the felt support or by fixing fasteners on the back. Direct bonding by means of strong mounting adhesive is also possible.

Acoustics

The charm of natural surfaces - in combination with the acoustic effectiveness of felt and the diffuse effect of the lamellas - make Acoustic-RibPanels a quick and easy way to improve room acoustics. Incident sound is guided through the gaps between the slats and absorbed by the felt behind them. Depending on the slat width and spacing, the acoustic effectiveness can be influenced as needed.

Technical data

Length 2800 mm (110.2“)
Width 210 mm (8.25“)
Thickness ca. 24,5 mm (≈1“ - depending on selected surface material)
Slat width 25 mm (≈1“)
Slat thickness approx. 12.5 mm (1/2“ - depending on selected surface material)
Slat spacing 10 mm (13/32“)
Thickness acoustic felt 12 mm (15/32“)
Weight 8,5 - 12,5 kg/m² (1.74 - 2.56 lbs/ft² - depending on selected surface material and dimensions)

Other dimensions and constructions on request.

Surfaces

Our products are available in different finishes.
Different surface materials can be combined with different perforations.

HPL / stained / lacquered

A wide range of HPL laminates, melamine surfaces and color lacquering according to RAL or NCS color codes are available for design.

Wood veneer

Real and natural, that's what makes the charm of wood veneers. In addition to different species of wood, various veneer matching patterns are also available. Please contact us.

Maple
Cherry
Oak
Walnut

LightBeton®

Concrete made lightweight - choose from the variety of our authentic LightBeton® surfaces.

Classic grey
Classic white
Retro
Classic anthracite
Authentic
Acoustic (with microperforation)

StoneVeneer

Our genuine stone veneer with the rough-split haptics is also available for surface design. It is a natural stone veneer being millions of years old and uniquely charming.

Other stone veneer finishes are available upon request.

Autumn
Black Star
Multi Color
Gold Green

Acoustic felt panels

Acoustic felt panels can also be used for other applications and are available in other color shades.

White
Black
Mottled gray

Planning documents

Panels
Technical data sheets

Here you get the technical data sheets as a free download (.pdf files).



Merken

Merken

Brochure

Here you can download our Brochure „Acoustic Systems” as a .pdf file.

Merken

Merken

Merken
