Acoustic-Grilles

Space design with pleasant sound effects

Space design with pleasant sound effects

Acoustic-Grilles consist of vertical lamellas which can be manufactured individually with different surfaces and dimensions. The connection of the lamellas among each other is done either by means of aluminum tubes or wood material strips (backer). The course of the installed grilles appears seamless.

Possible surfaces



Merken

Merken

Examples

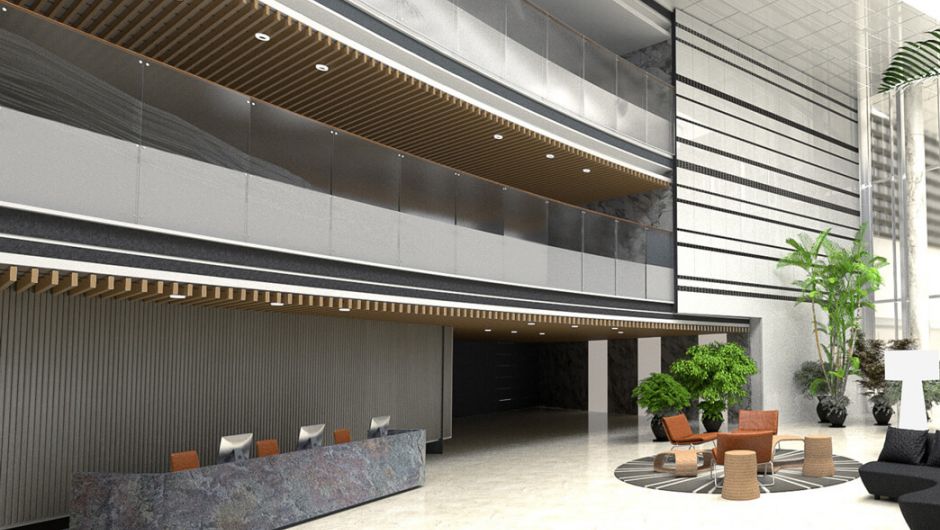

Entrance Hall

Product:
Acoustic-Grilles, Oak veneer

Ceiling cladding

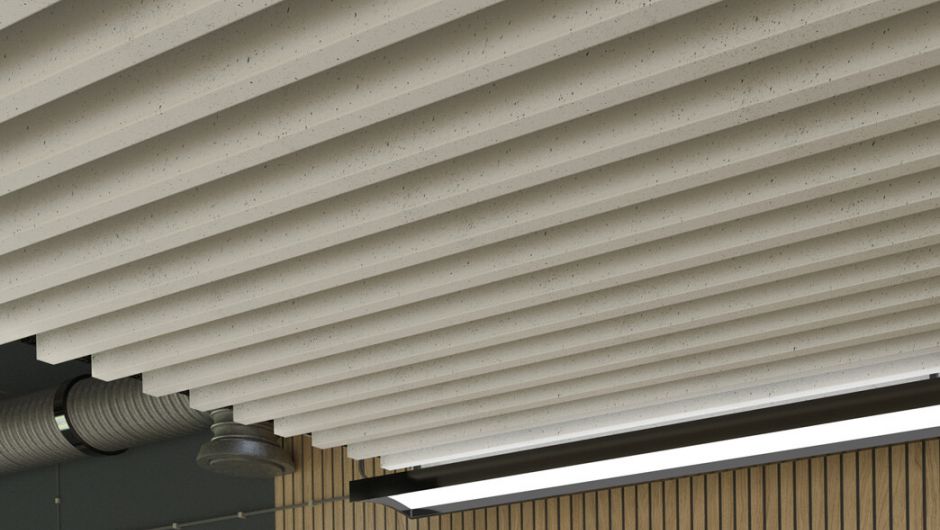

Loft

Product:
Acoustic-Grilles, LightBeton® Classic Grey

Ceiling cladding

Properties for perfect acoustics

Material structure

Acoustic-Grilles consist of vertical lamellas, which can be manufactured individually with different surfaces, widths and lengths. A fleece lamination on the back can provide extended absorption performance.

1. Surface material front side
2. MDF / particle board
3. Back side laminate or veneer
4. Edging (veneer, ABS, melamine)

Mounting

Acoustic Grilles can be easily attached to corresponding 24 mm (≈1“) T-profiles for grid system ceilings. Grilles can be fastened by means of J- or U-clips. These allow easy disassembly of individual grills for maintenance or similar purposes even after installation, if required.

Lighting

Combination with area lighting and LED strips possible

Acoustics

Acoustic-Grilles offer an ideal acoustic solution with a natural charm. The height and arrangement of the louvers can influence the acoustic effectiveness and the desired atmosphere. Incident sound is reflected from the slats through the open areas between the slats behind the Acoustic-Grilles. Fleece lamination on the back or additional absorption material can provide extended absorption performance.

Technical data

Length 500 – 2700 mm (19 11/16“ to 106 5/16“)
Width 305 mm (12“ - depending on selected grid)
Slat height 45 - 150 mm (1 3/4“ to 5 7/8“)
Slat thickness 12 - 51 mm (1/2“ to 2“)
Weight approx. 9 - 30 kg/m² (1.84 - 6.15 lbs/sqft - depending on dimensions and selected grid)

Other dimensions and constructions on request.

Surfaces

Our products are available in different finishes.
Different surface materials can be combined with different perforations.

HPL / stained / lacquered

A wide range of HPL laminates, melamine surfaces and color lacquering according to RAL or NCS color codes are available for design.

Wood veneer

Real and natural, that's what makes the charm of wood veneers. In addition to different species of wood, various veneer matching patterns are also available. Please contact us.

Maple
Cherry
Oak
Walnut

LightBeton®

Concrete made lightweight - choose from the variety of our authentic LightBeton® surfaces.

Classic grey
Classic white
Retro
Authentic

StoneVeneer

Our genuine stone veneer with the rough-split haptics is also available for surface design. It is a natural stone veneer being millions of years old and uniquely charming.

Other stone veneer finishes are available upon request.

Autumn
Black Star
Multi Color
Gold Green

Planning documents

Technical data sheets

Here you get the technical data sheets as a free download (.pdf files).



Merken

Merken

Brochure

Here you can download our Brochure „Acoustic Systems” as a .pdf file.
