Acoustic-CompactBoard®

Acoustic panels for interior design

Acoustic panels for interior design

Acoustic-CompactBoard®, the classic design for large-areas, acoustically effective wall and ceiling panels. The construction of acoustically optimized carrier board and micro-perforated surfaces make this product a true all-rounder. The Acoustic-CompactBoard® can be tailored to your specific needs, both visually and technically adapted to your needs.

Merken

Possible surfaces



Merken

Merken

Examples

Wall cladding

Product:
Acoustic-CompactBoard®

Wall cladding

Product:
Acoustic-CompactBoard®

Properties for perfect acoustics

Material structure

Acoustic-CompactBoard® consists of an acoustically optimized carrier material which is covered with the desired perforated surfaces.

1. Surface material front side
2. Natural MDF, drilled
3. Black acoustic fleece
4. Surface material back side
5. Edging (veneer, ABS, PP, melamine etc. optional)

Mounting

The Acoustic-CompactBoard® can be mounted easily and quickly on large wall surfaces, e.g. using attachment profiles. For this purpose, short panel clips are attached to the back of the panels, with which they can be easily hooked into the continuous profiles of the substructure.

Acoustics

Due to the interaction of the acoustically optimized carrier board with the micro-perforated face sheets, the Acoustic-CompactBoard® ensures pleasant room acoustics.

Technical data

Length (max.) 3000 mm (118 1/8“ - depending on selected surface material)
Width (max.) 1250 mm (49 3/16“ - depending on selected surface material)
Thickness 17.5 mm (11/16“)
Weight approx. 12.5 kg/m² (2.56 lbs/sqft - depending on selected surface material and dimensions)

Other dimensions and constructions on request.

Surfaces

Our products are available in different finishes.
Different surface materials can be combined with different perforations.

HPL / stained / lacquered

A wide range of HPL laminates, melamine surfaces and color lacquering according to RAL or NCS color codes are available for design.

Wood veneer

Real and natural, that's what makes the charm of wood veneers. In addition to different species of wood, various veneer matching patterns are also available. Please contact us.

Maple
Cherry
Oak
Walnut

NEW! The acoustic solution with acoustically optimized design surface

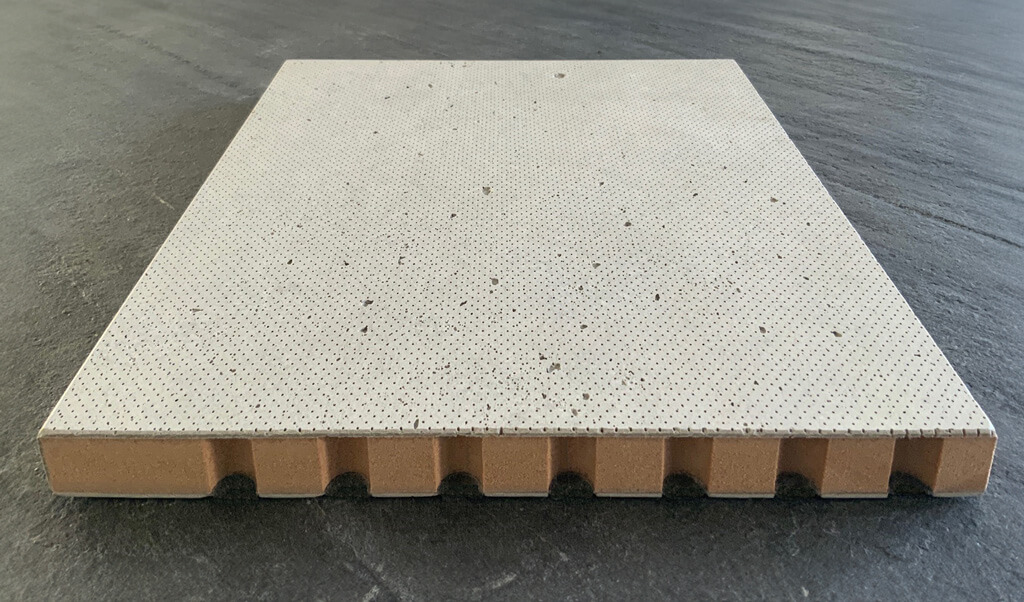

The acoustic panel for interior architecture has a micro-perforation and the authentic LightBeton® real concrete surface. The micro-perforations transform the hard concrete surface into a unique sound absorber. This is innovative and exceptional in the industry. The micro-perforations are invisible when viewed from a distance of approx. 1.5 meters. The latest product development for large, acoustically effective wall and ceiling cladding is a real highlight for your next high profile projects.

This new acoustic solution impresses with its excellent sound absorber properties and is available in sizes up to 3,000 x 1,220 x 19 mm. The front cover and the backside consist of approx. 1.5 mm thick real concrete.  With the option of edge banding a cut-to-size panel it is possible to achieve the look of a solid concrete panel.

LightBeton®

Concrete made lightweight - choose from the variety of our authentic LightBeton® surfaces.

Acoustic (with microperforation)

Planning documents

Micro-perforations
Text for tenders

Here you get the texts for tenders as a free download (.doc files).



Merken

Merken

Merken

Merken

Technical data sheets

Here you get the technical data sheets as a free download (.pdf files).



Merken

Merken

Handling information

All important information about transport, storage, cleaning and maintenance you can find here as a .PDF download file.



Merken

Brochure

Here you can download our Brochure „Acoustic Systems” as a .pdf file.

Merken

Merken

Merken
