Space design with pleasant sound effects

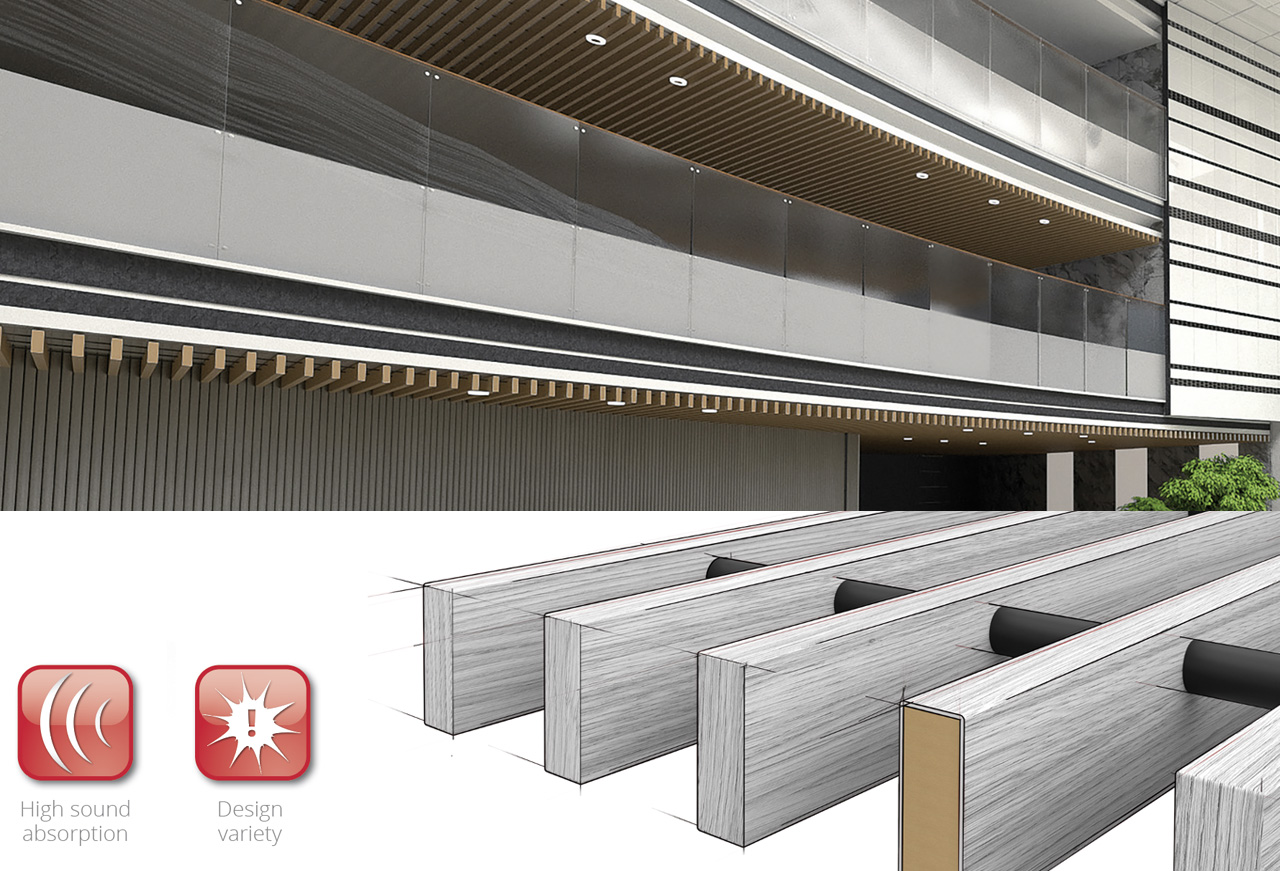

Acoustic-Grilles consist of vertical lamellas which can be manufactured individually with different surfaces and dimensions. The connection of the lamellas among each other is done either by means of aluminum tubes or wood material strips (backer). The course of the installed grilles appears seamless.
Acoustic-Grilles, Oak veneer
Acoustic-Grilles, LightBeton® Classic Grey
Properties for perfect acoustics
Acoustic-Grilles consist of vertical lamellas, which can be manufactured individually with different surfaces, widths and lengths. A fleece lamination on the back can provide extended absorption performance.
1. Surface material front side
2. MDF / particle board
3. Back side laminate or veneer
4. Edging (veneer, ABS, melamine)
Acoustic Grilles can be easily attached to corresponding 24 mm (≈1“) T-profiles for grid system ceilings. Grilles can be fastened by means of J- or U-clips. These allow easy disassembly of individual grills for maintenance or similar purposes even after installation, if required.
Combination with area lighting and LED strips possible
Acoustic-Grilles offer an ideal acoustic solution with a natural charm. The height and arrangement of the louvers can influence the acoustic effectiveness and the desired atmosphere. Incident sound is reflected from the slats through the open areas between the slats behind the Acoustic-Grilles. Fleece lamination on the back or additional absorption material can provide extended absorption performance.
|Length||500 – 2700 mm (19.7“ to 106.3“)|
|Width||305 mm (12“ - depending on selected grid)|
|Slat height||45 - 150 mm (1.8“ to 5.9“)|
|Slat thickness||12 - 51 mm (15/32“ to 2“)|
|Weight||approx. 9 - 3 kg/m² (1.84 - 6.15 lbs/ft² - depending on dimensions and selected grid)|
Other dimensions and constructions on request.
Our products are available in different finishes.
Different surface materials can be combined with different perforations.
HPL / stained / lacquered
A wide range of HPL laminates, melamine surfaces and color lacquering according to RAL or NCS color codes are available for design.
Real and natural, that's what makes the charm of wood veneers. In addition to different species of wood, various veneer matching patterns are also available. Please contact us.
Concrete made lightweight - choose from the variety of our authentic LightBeton® surfaces.
Our genuine stone veneer with the rough-split haptics is also available for surface design. It is a natural stone veneer being millions of years old and uniquely charming.
Other stone veneer finishes are available upon request.
