Acoustic-CompactBoard®
Acoustic panels for interior design
Acoustic-CompactBoard®, the classic design for large-areas, acoustically effective wall and ceiling panels. The construction of acoustically optimized carrier board and micro-perforated surfaces make this product a true all-rounder. The Acoustic-CompactBoard® can be tailored to your specific needs, both visually and technically adapted to your needs.
Possible surfaces
Examples
Properties for perfect acoustics

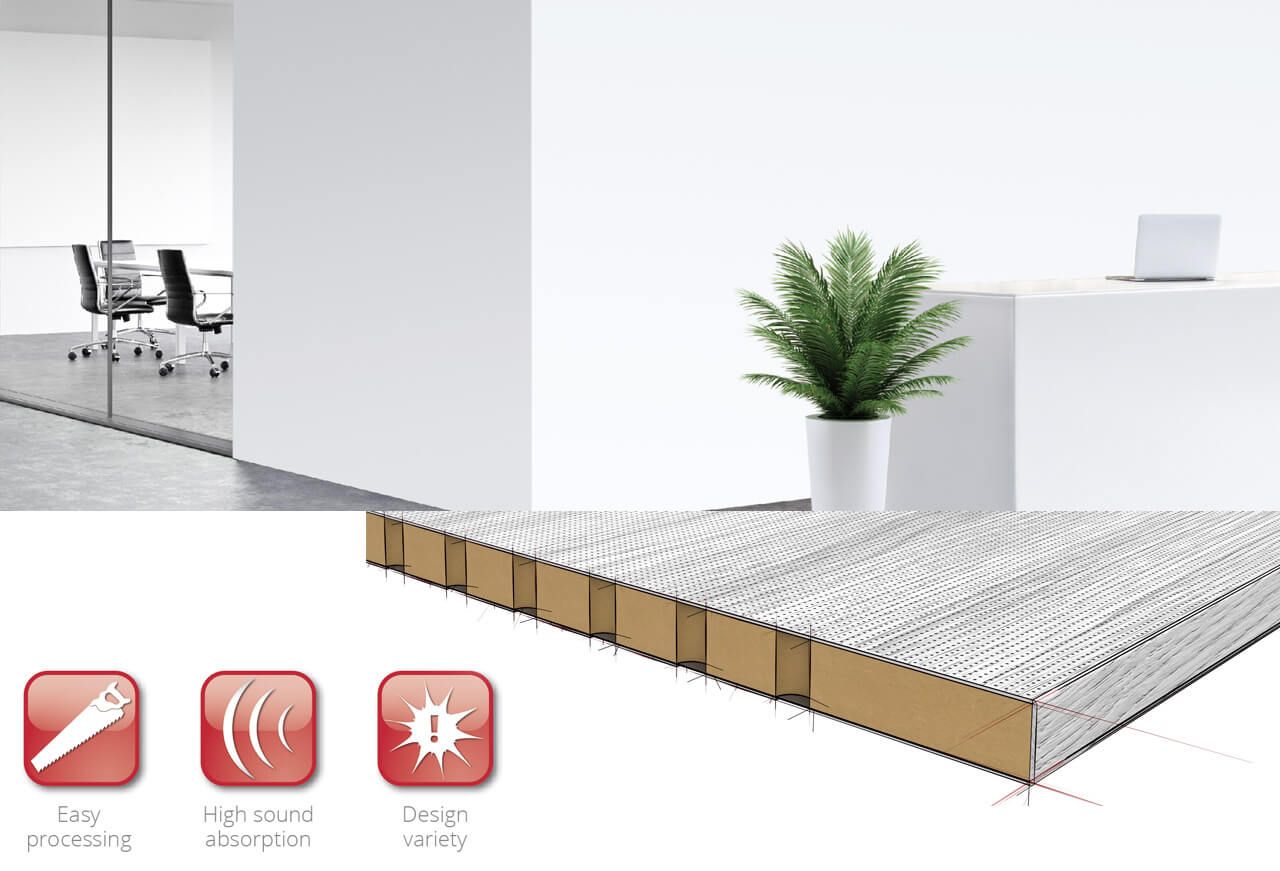

Material structure
Acoustic-CompactBoard® consists of an acoustically optimized carrier material which is covered with the desired perforated surfaces.
1. Surface material front side
2. Natural MDF, drilled
3. Black acoustic fleece
4. Surface material back side
5. Edging (veneer, ABS, PP, melamine etc. optional)
Mounting

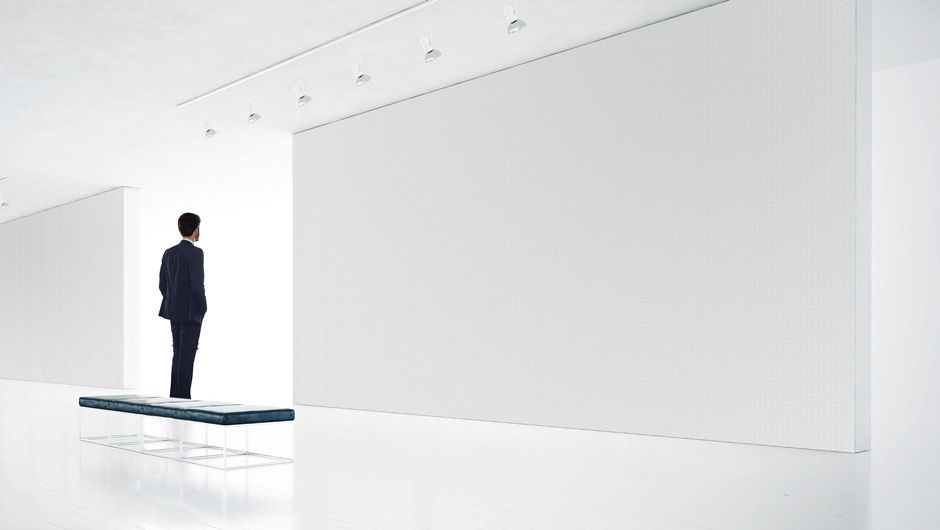

The Acoustic-CompactBoard® can be mounted easily and quickly on large wall surfaces, e.g. using attachment profiles. For this purpose, short panel clips are attached to the back of the panels, with which they can be easily hooked into the continuous profiles of the substructure.
Acoustics
Due to the interaction of the acoustically optimized carrier board with the micro-perforated face sheets, the Acoustic-CompactBoard® ensures pleasant room acoustics.
Technical data
| Length (max.) | 3000 mm (118.1“ - depending on selected surface material) |
| Width (max.) | 1250 mm (49.2“ - depending on selected surface material) |
| Thickness | 17,5 mm (11/16“) |
| Weight | approx. 12,5 kg/m² (2.56 lbs/ft² - depending on selected surface material and dimensions) |
Other dimensions and constructions on request.
Surfaces
Our products are available in different finishes.
Different surface materials can be combined with different perforations.
HPL / stained / lacquered
A wide range of HPL laminates, melamine surfaces and color lacquering according to RAL or NCS color codes are available for design.
Wood veneer
Real and natural, that's what makes the charm of wood veneers. In addition to different species of wood, various veneer matching patterns are also available. Please contact us.
LightBeton®
Concrete made lightweight - choose from the variety of our authentic LightBeton® surfaces.
Planning documents and text for tenders
 |
Here you get the texts for tenders as a free download (.doc files). |
 |
Here you get the technical data sheets as a free download (.pdf files). |
 |
All important information about transport, storage, cleaning and maintenance you can find here as a .PDF download file. |
